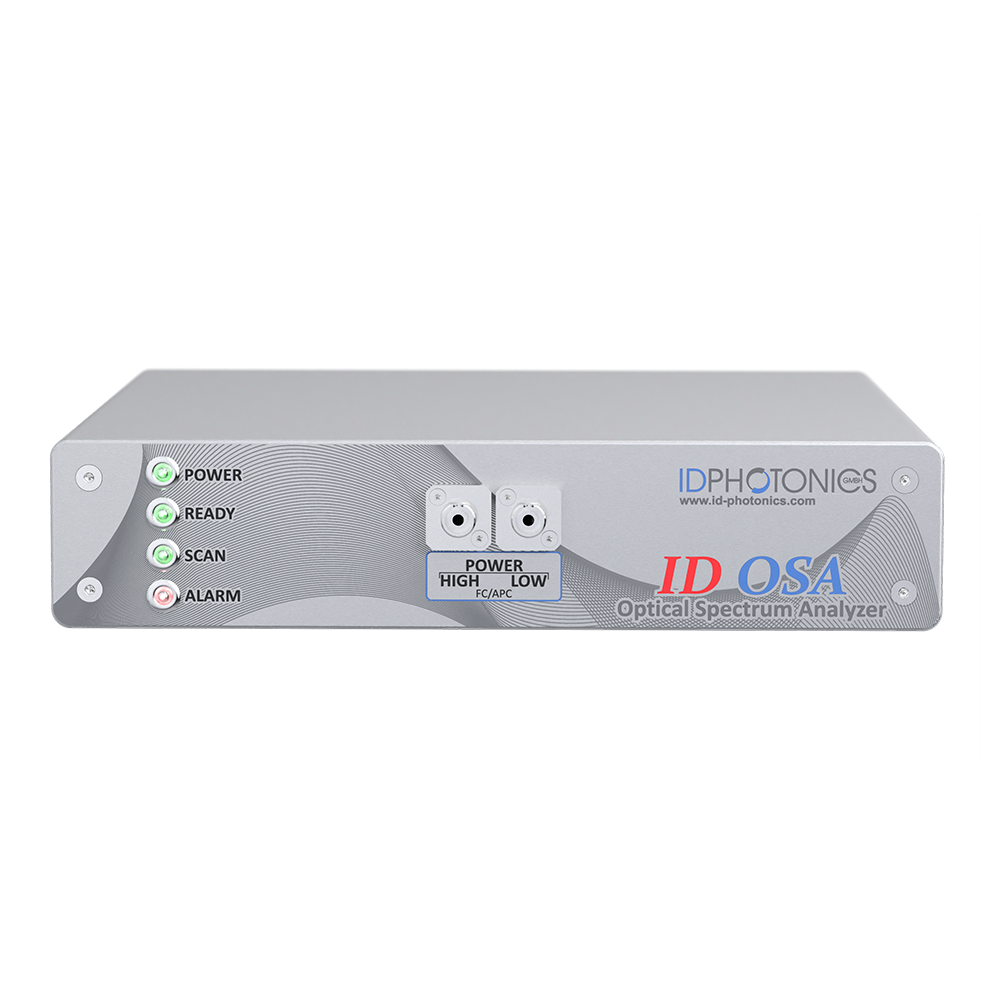

Optical Spectrum Analyzer
Quick Overview
Features:
Versatile Compact Optical Spectrum Analyzer with picometer class resolution across the C-band
Ideal for spectral monitoring in R&D and production test applications for these reasons:
Cost Effective – <30% a traditional OSA
Rugged – no calibration required and no moving parts
Fast – scans full C-band with highest resolution in less than 1 second
Compact – 1/2 width 1RU rack height (2 can be racked side-by-side)
2 input ports with different sensitivity boosts the available power range to over 90dB
Removable input connector plate allows for easy access and cleaning of the input connectors
Remote Control via USB 2.0 and Ethernet via GUI or SCPI command set
Downloadable Items:
Datasheet
| Model | Channels | Band | Resolution Bandwidth | Dynamic Range | Type | |
|---|---|---|---|---|---|---|
| ID-OSA-MPD-01 | 2 | C | 1.7 GHz (13.6 pm) | >70dB | Compact | |
| ID-OSA-MPD-11 | 2 | L | 1.7 GHz (13.6 pm) | >70dB | Compact |
