Key Features

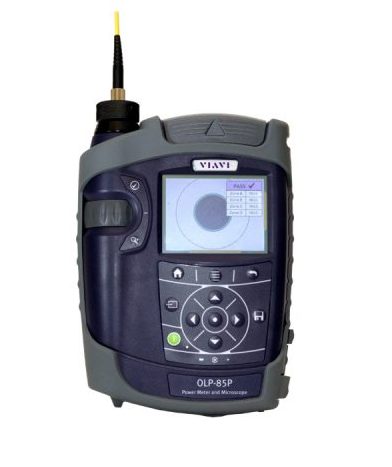

- The OLP-85P features an integrated patch-cord microscope (PCM) for added value and improved workflow efficiency.
- Complete jobs faster, correctly, and on time—the first time with uniquely integrated fiber inspection and test with auto pass/fail analysis
- Battery-operated field-portable optical power meters with an 800 to 1700 nm measurement wavelength range and high accuracy over an ultra-wide 100 dB dynamic range
- 3.5-in color touch screen with integrated stylus
- Automated pass/fail fiber inspection analysis with the optional P5000i microscope, also available with integrated PCM
- Individual threshold settings for power and loss pass/fail analysis
- Onboard fiber inspection and test results storage with time stamp
- Data transfer and remote control via USB, Ethernet or optional WiFi connection
- Auto-lambda and multi-lambda test functions communicate with VIAVI light sources
- In-service loss test option y Rugged, weather-proof design
- SmartPowerOn functionality for instantaneous power on
Applications
- Measurement of optical power (absolute and relative)
- Measurement of optical insertion loss together with a VIAVI optical light source OLS-3x or OLS-8x
- Inspection of optical connectors (IBYC)
- In-service loss test option
