531MHz = (1/16) * 8.5G
622MHz = (1/16) * 9.9G
644MHz = (1/16) * 10.3G
657MHz = (1/16 )* 10.5G
666MHz = (1/16) * 10.7G
693MHz = (1/16) * 11.1G
707MHz = (1/16) * 11.3G

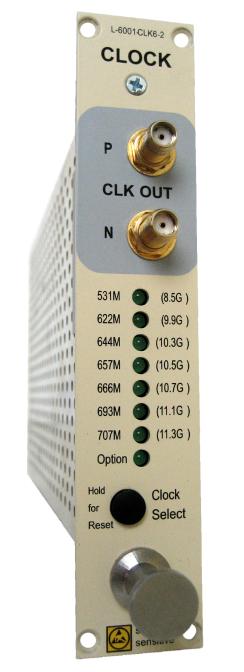

CLK6-2
Quick Overview
Low frequency continuous clock source 50 MHz to 900 MHz with selectable presets
531MHz = (1/16) * 8.5G
622MHz = (1/16) * 9.9G
644MHz = (1/16) * 10.3G
657MHz = (1/16 )* 10.5G
666MHz = (1/16) * 10.7G
693MHz = (1/16) * 11.1G
707MHz = (1/16) * 11.3G
| Name | CLK6-2 |
|---|---|
| Description | Low frequency continuous clock source 50 MHz to 900 MHz with selectable presets |
| Differential Clock Output Signal | 1100 – 1900 mV |
| Clock Rate Continuous | 50 – 900 MHz |
| Clock Output Level Channel P or N | 550 – 950 Mv |
| Clock Rate in 7 Steps | 531 – 707 MHz |
| Differential Output Impedance | 90 – 110 Ω |
| Operation Temperature | 0 – 40 °C |
| Data-rate | Selectable data rates: 531MHz = (1/16) * 8.5G 622MHz = (1/16) * 9.9G 644MHz = (1/16) * 10.3G 657MHz = (1/16 )* 10.5G 666MHz = (1/16) * 10.7G 693MHz = (1/16) * 11.1G 707MHz = (1/16) * 11.3G |
