two wavelengths and second order pumping
of 1480nm
FOA-R9400PR-RPA3C-AA001
Quick Overview

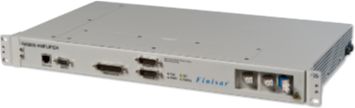

UltraSpan ROPA Pump Unit, 1RU Network Interfaced, 1532 – 1566.5nm, 800mW output power, NEBS, Class 1M
two wavelengths and second order pumping
of 1480nm
| Name | FOA-R9400PR-RPA3C-AA001 |
|---|---|
| Description | UltraSpan ROPA Pump Unit, 1RU Network Interfaced, 1532 – 1566.5nm, 800mW output power, NEBS, Class 1M |
| Wavelength Range | 1533nm to 1565nm |
| Size | 1RU |
| PDG + PDL | 0.4dB ; 0.15dB |
| Composite pump power | 800mW to 840mW |
| Input power range | 22dBm (max power w/out damage) |
| Connector Type | LC/UPC and E2000 |
| Power Consumption | 55W |
| Power Supply | -76V to -36V |
| I/O | SNMP, RJ45 |
| Series | UltraSpan ROPA |
