Features
- 250um bare fiber sleeve
- SMF28Ultra
- A30 >30dB or A40>40dB Dynamic Range
- 3.5 mm diameter
- Laser welded package
- Reliable
- 0-5 V
- RoHS compliant
Applications
- Telecom
- Instrumentation
- Test and measurement
mVOA-9B
Quick Overview

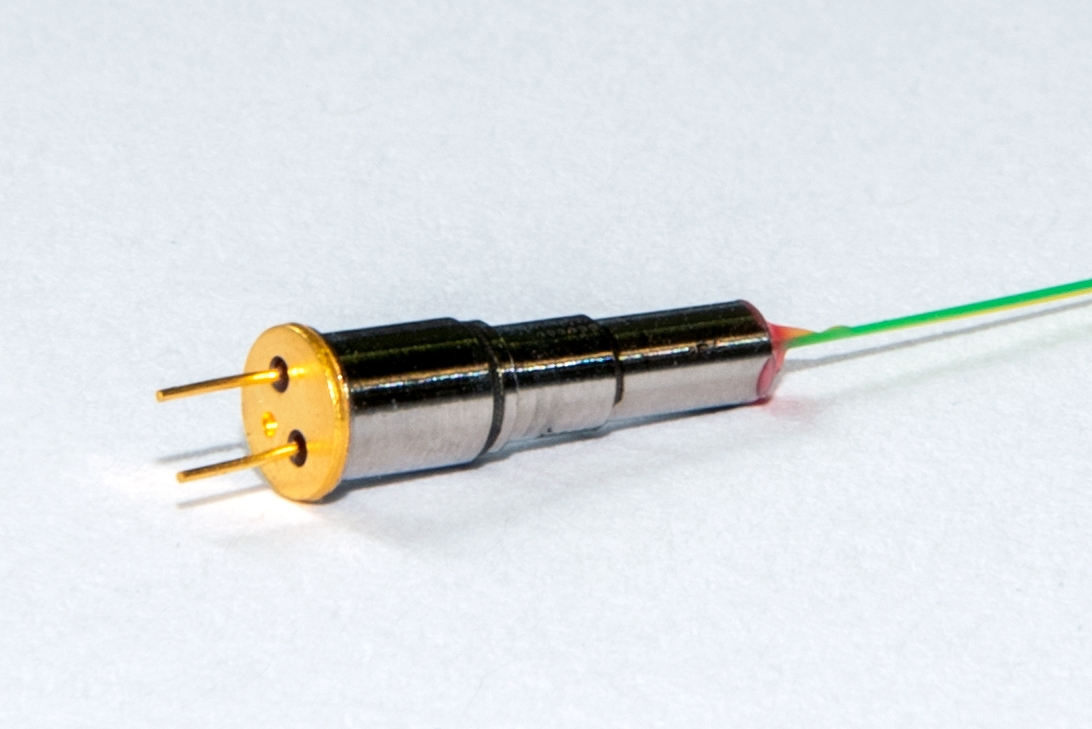

miniature Variable Optical Attenuator – coaxial design – Sercalo’s fiber optic Variable Optical Attenuator is based on an electrostatic MEMS mirror. A voltage between 0-5 V on the drive pin sets the optical attenuation. When power is removed the VOA returns into its default state.
| Name | mVOA-9B |
|---|---|
| Description | miniature Variable Optical Attenuator – coaxial design |
| Wavelength Range | 1250nm – 1670nm |
| Cycle Rate | 50 Hz |
| Insertion Loss | 0.5 dB @ min. attenuation |
| Max Attenuation | -: 1-25 dB, A30: 1-30 dB, A40: 1-40 dB |
| Fiber Sleeve Type | 250µm bare fiber |
| Fiber Type | SMF28Ultra |
| PDL | 0.10dB @20dB |
