- Clean Probing of parallel buses
- Active Probing Solution: high input impedance and active signal amplification
- Ideal for easy attachment to 4-lane MIPI D-PHY buses (plus clock)
- Shielded From EMI issues: all active components are shielded from external electromagnetic signals
- Standard 50 Ohm Co-Axial Output Interface: compatible with any 50 Ohm instrument
- Low Noise: enables high-reliability protocol analysis or bit error rate testing
RSH1
Quick Overview

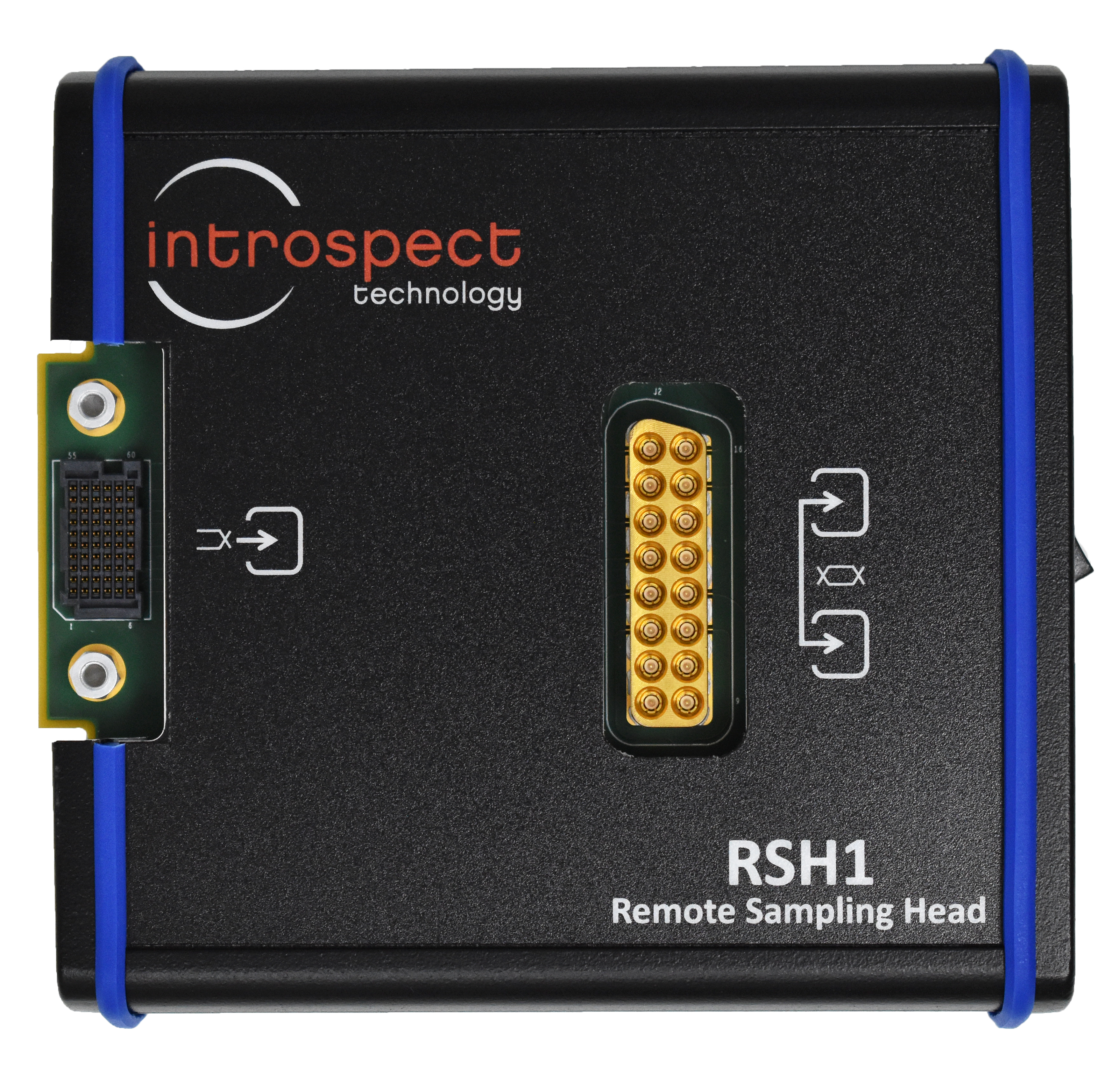

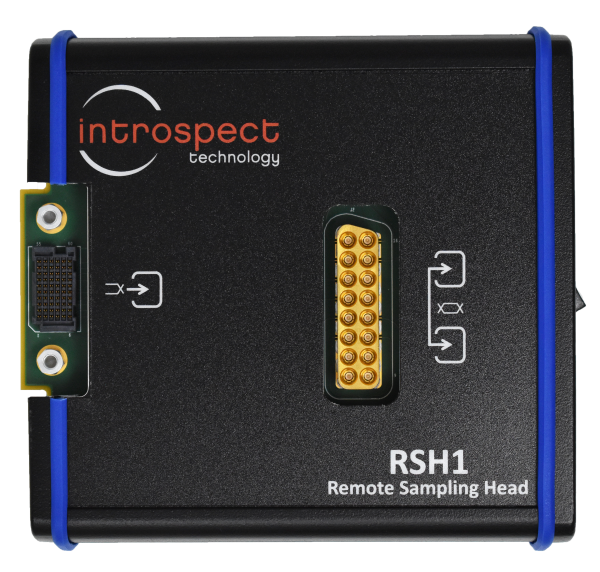

RSH1 – Remote Sampling Head – 10 Active Probes @ 4 GHz
| Name | RSH1 |
|---|---|
| Description | RSH1 – Remote Sampling Head – 10 Active Probes @ 4 GHz |
| Bandwidth | 4 GHz |
| Output Impedance | 50 Ω (SMA connector) |
| Input Impedance | 600 Ω |
