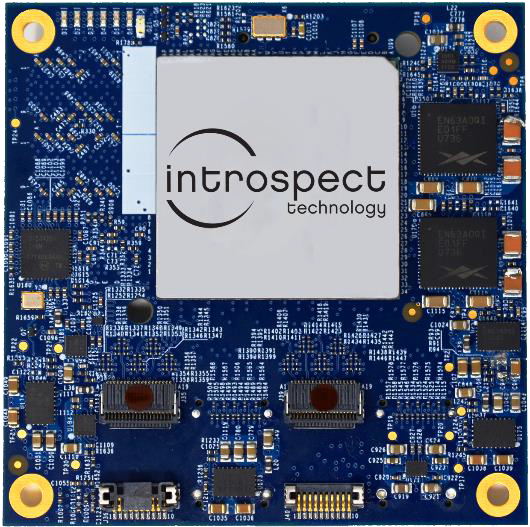

Introspect – MIPI Testers – SV4D-DPTX

Features&nbsp

Four complete D-PHYSM transmitters on one module1, with operation up to 2.5 Gbps

Two complete C-PHYSM or D-PHY receivers on one module1, with operation up to 2.5 Gsps/Gbps

Support for MIPI DSI, DSI-2, and CSI-2 protocols

Coverage for sLVDS or LVCMOS test applications

State of the art programming environment based on the highly intuitive Python language

Multi-site test capability, tiny footprint and minimal I/O requirements

Applications&nbsp

Production testing of display driver ICs

Production testing of image sensors

Production testing of connectivity and bridge devices

Production testing of FPGAs, AI co-processors, and microcontrollers

Name	SV4D-DPTX
Description	Direct Attach MIPI Test Module
Tx Channels	4+clock
Rx Channels	4+clock
Min Data Rate	156 Mbps
Max Data Rate	2.5 Gbps
Differential Voltage Output	500 mV
Clock Outputs	2
Clock Inputs	1
User Programmable Pattern Memory	512 Mbytes
Pattern Capability	Arbitrary packet generation, stressed receiver eye generation, global timing control, LP & HS data patterns
Series	SV3C Series
Configurations	Instrument & Software only

SV4D-DPTX
