TF1C+L1009B
Quick Overview

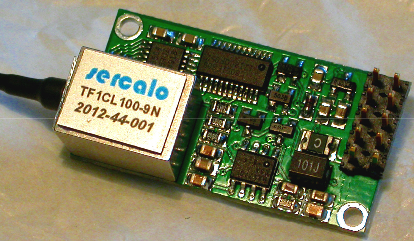

Tunable Optical Filter with control Board – C+L Band
| Name | TF1C+L1009B |
|---|---|
| Description | Tunable Optical Filter with control Board – C+L Band |
| Wavelength Range | 1525nm – 1625 nm |
| Bandwidth | 0.6nm |
| Band | C+L |
| Size (with controller board) | 37mm x 20mm x 10mm |
| Size (Optical Head) | 16mm x 11.2mm x 9.2mm |
| SMSR | 25dB |
| Switching Time | 10ms |
| Insertion Loss | 2.0dB |
| Fiber Sleeve Type | bare fiber |
| Fiber Type | SMF28 |
| Series | TF Series |
| PDL | 0.3dB |
