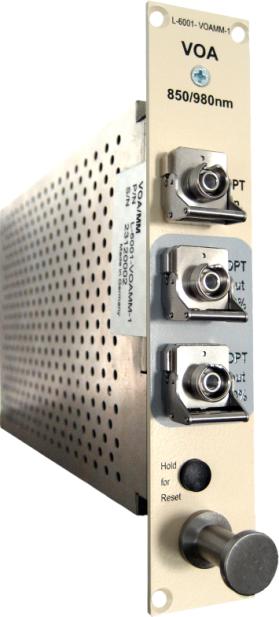

Luceo, VOA, Variable Optical Attenuator, Multi-Mode, MM VOAMM

Calibrated Multimode or Singlemode VOA

Attenuation range: 40dB

Attenuation step size: 0.01dB

Monitor Output (10%)

Changeable and cleanable optical adapter (FC, LC and SC available)

Applications

Optical loss simulation

Sensitivity measurement

Variable optical source (optical source required)

BER measurement

EDFA characterization

Name	VOAMM
Description	Variable Optical Attenuator, Multi-mode
Wavelength(nm)	800 – 1000 nm
Total Error	1 dB
Repeatability of Attenuation Setting	TBD dB
Attenuation Step	0.03 dB
Wavelength Dependant Loss	0.2 – TBD dB
Operation Temperature	0 – 40°C
Attenuation range	IL – 40 dB
Insertion Loss	1.35 – 2 dB
Fiber Type	MMF 50/125 µm

VOAMM
