- 300ps Optical Delay Range
- Enables to set the delay of the interferometer to the desired value
- Ideal for D(Q)PSK demodulation
- Widely tunable – FSR from 3.3GHz to infinite
- Manual tuning
- Ultra fast
WT-MINT-300-M-U
Quick Overview

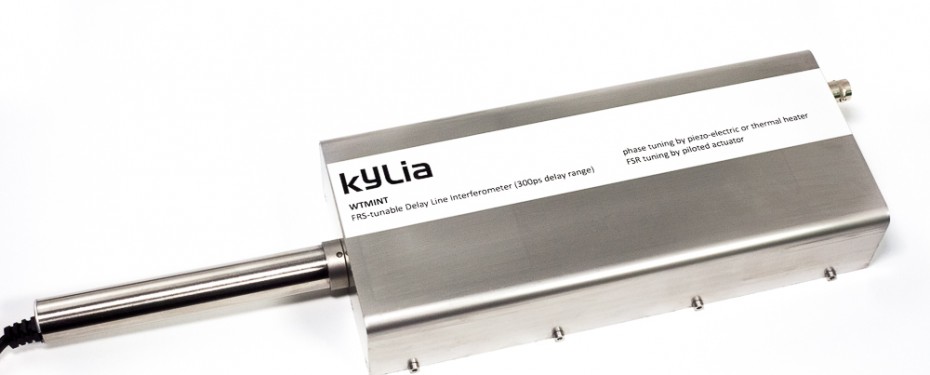

Widely Tunable Micro Interferometer, 300ps, manual tuning, ultra fast
| Name | WT-MINT-300-M-U |
|---|---|
| Description | Widely Tunable Micro Interferometer, 300ps, manual tuning, ultra fast |
| Size | 216 x 92 x 40 mm |
| Tuning time constant | 20 µs |
| Tuning Voltage | Ultra-fast, Typ. 75V to reach tuning range |
| Operating wavelength | 1520 – 1570 nm |
| phase tuning connector | BNC |
| FSR tuning range | 3.3GHz to infinite |
| Optical delay range | 300 ps |
| Optical return loss | 35 dB |
| IL uniformity | 1.0 dB |
| Power Consumption | 0.001 W |
| Skew | Typ. 0.5 ps, Max 1.0 ps |
| Insertion Loss | 4.0 dB |
| Tuning Range | 1.5 FSR |
| PDL | 0.8 dB |
